MIKROZON®

MIKROZON®

Miniaturized Ozone Generator

With diamond-coated silicon electrodes

MIKROZON® - Miniaturisierter Ozongenerator

Integrate MIKROZON® into your Product

The MIKROZON® cell is CONDIAS' smallest electrolytic ozone generator. By producing ozone directly from water, the disinfectant is generated exactly where it is needed.


Due to its small size, the MIKROZON® cell is suitable for small, household applications. The cartridge is easily replaceable in the cell on site.

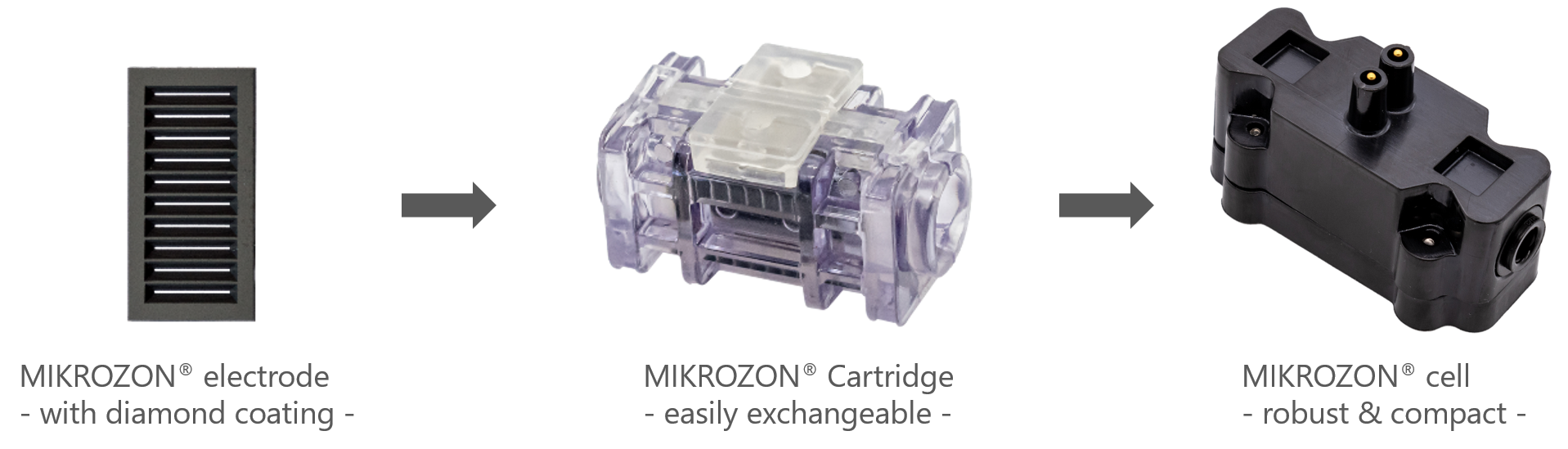

Composition of the MIKROZON® cell with exchangeable cartridge and diamond electrode

Areas of application



  • produces ozone directly in water and at the point of use
  • produces ozonized water for disinfection and sanitization of surfaces



Environmentally friendly application



  • Disinfection without adding chemicals
  • Disinfection without residues of disinfectants



Easy to use



  • easy dosage through current-controlled process
  • easy exchange of the cartridge



Flexible use

  • versatile due to its small form factor
  • fast and flexible integration

Benefits of ozone



  • better than UV: works by depot effect beyond the place of origin
  • no impairment of smell or taste after application



You can decide whether the MIKROZON® cartridge should be integrated into your product or whether you would like to purchase the MIKROZON® cell or the MIKROZON® electrode from us.


If required, we support the integration process of the MIKROZON® assemblies into your products on a design and technical level:


  • Provision of 3D design data
  • Advice on the choice of operating parameters
  • Development work in CONDIAS' own laboratory

Properties of the MIKROZON® Ozone Generator

cell dimensions (L x W x H) 61 mm x 31 mm x 38 mm
dimensions cartridge (L x W x H) 27 mm x 15 mm x 15 mm
water connections Hose connection: outer diam. = 6 mm
max. pressure 4 bar
recommended flow rate 0.5 - 1.5 L / min
max. Amperage 1.2 A
recommended current range 0.3 - 1.0 A
max. tension 60 V
usual voltage range 8 - 20 V
operating hours 450 h
