CONDIACELL® CC

CONDIACELL® Cells Model CC
Cells for Oxidative Wastewater Treatment

With boron-doped diamond electrodes

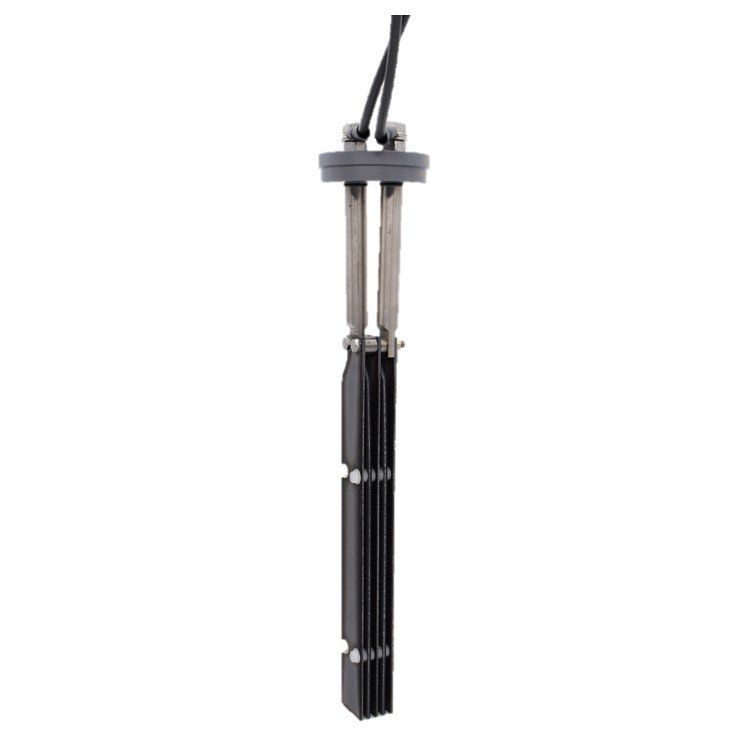

CONDIACELL® Stack Model EAOP® TestKit for wastewater treatment

CONDIACELL® cell model CC1500 for wastewater treatment

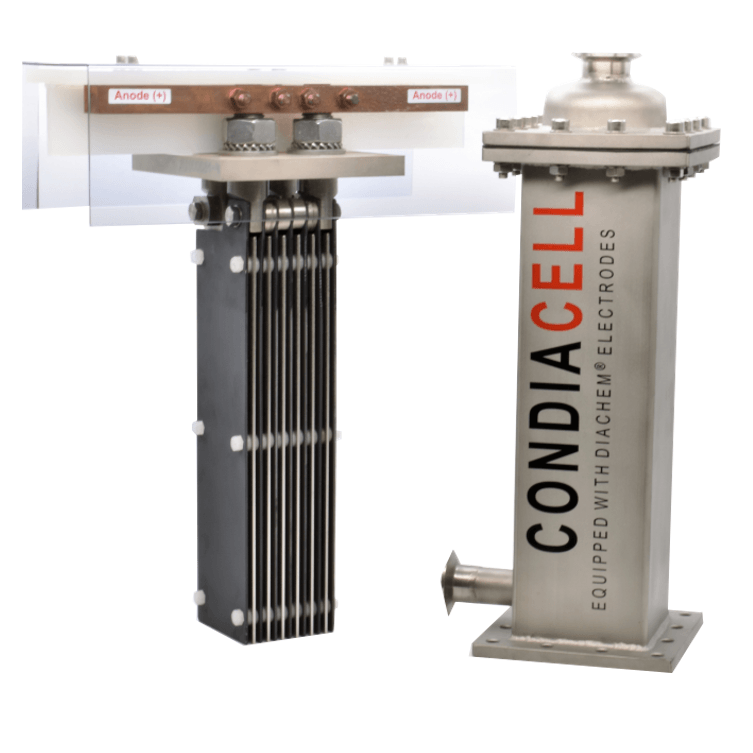

CONDIACELL® cell model CC5000 for wastewater treatment

CONDIACELL® Cells Model CC -

The suitable Solution for your Wastewater Problem

The products of the CONDIACELL® cells (CC models) are stacks of plate electrodes (anode = DIACHEM® / cathode = stainless steel or DIACHEM®) which are encased in a stainless steel housing. They are available in different sizes.

For laboratory tests we recommend using the CONDIACELL® Stack type EAOP® TestKit. It is especially designed for first feasibility studies and allows a quick identification of technical and economical parameters, which are essential for the project development of wastewater treatment.

The CONDIACELL® Cell Model CC are scaled cells of the CONDIACELL® Stack Type EAOP® TestKit, so that the cell properties are maintained throughout the entire project development.

The CONDIACELL® Model CC cells are recommended for use in the oxidation of COD pollutant concentrations in the range > 0.5 g/L to < 50 g/L.

Properties of the CONDIACELL® Cells Model CC

	EAOP® TestKit	CC1500	CC5000
dimensions ( x w x h)	30 mm x 26 mm x 350 mm	269 mm x 167 mm x 371 mm	344 mm x 185 mm x 531 mm
weight	0.7 kg	8.5 kg	21 kg
max. amperage	40 A	500 A	1000 A
max. voltage	48 V	20 V	20 V
min. flow rate		1.4 m³/h	2.5 m³/h
max. temperature of medium	80 °C	80 °C	80 °C
max. pression	no pressure	6 bar	4 bar
