CONDIACELL® ECWP

CONDIACELL® Cells Model ECWP

Electrochemical Water Polishing Cells

With diamond-coated perforated plate electrodes

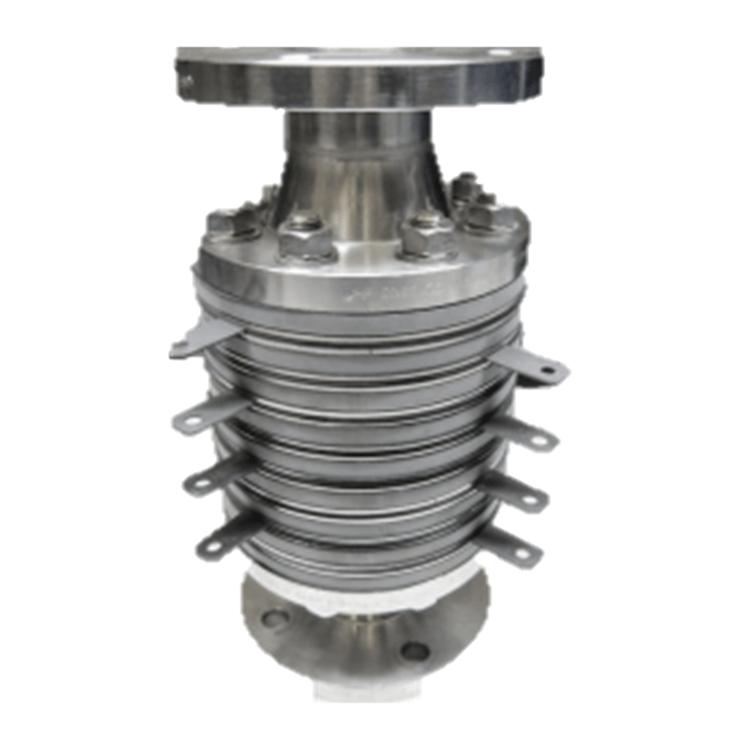

CONDIACELL® cells model ECWP for Electrochemical Water Polishing

These cells are designed to effectively treat large volume flows with low concentrations of pollutants. The innovative cell design changes the hydrodynamics in such a way that the pollutants are transported more efficiently to the anode surface. The design also promotes the reduction of unwanted inorganic oxidation products


This considerable advantage of the CONDIACELL® cell model ECWP has recently been demonstrated in the treatment of waste water from the automotive industry. The desired limit value of < 20 mg/L was achieved with 1/10 of the hydroxyl radicals compared to the CONDIACELL® cell model CC.

Data Sheet (en)

Effect of the CONDIACELL® cells model ECWP in the treatment of waste water from the automotive industry

Degradation of PFAS with DIACHEM® electrodes

The technology is currently under development, especially for the degradation of trace substances and especially for the degradation of PFAS (short for per- and polyfluorinated alkyl compounds). The degradation of PFAS with DIACHEM® electrodes has been proven to be significantly more effective than with other oxidation processes.


Literature: Oxidative Destruction of Perfluorooctane Sulfonate Using Boron-Doped Diamond Film Electrodes by KE Carter, J. Farrel in Environmental Science and Technology 42 (16): 6111-5 September 2008 https://doi.org/10.1021/es703273s

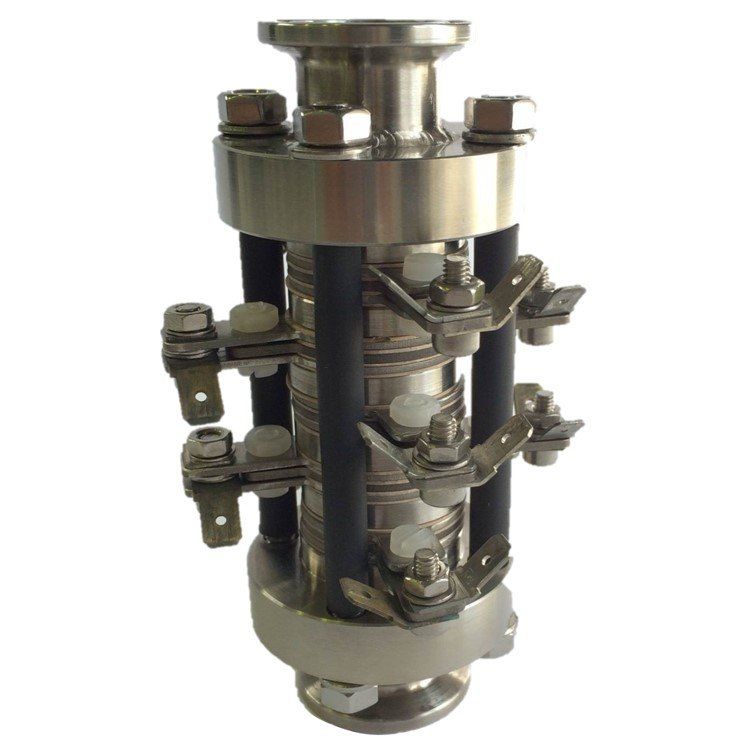

CONDIACELL® Cell Model D20 ECWP

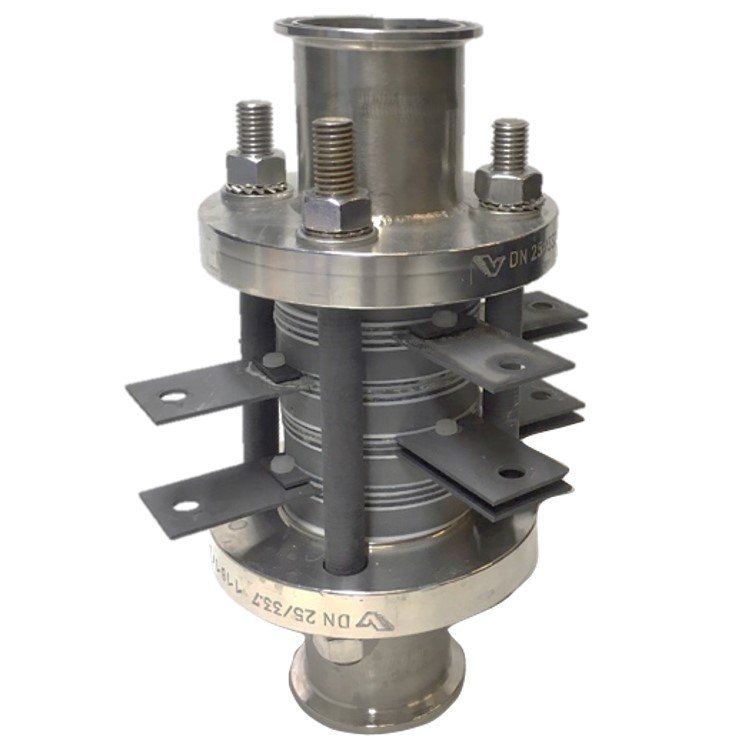

CONDIACELL® Cell Model D50 ECWP

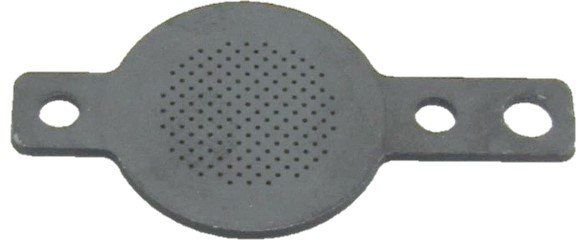

DIACHEM® electrode type Ø20x1.5 for cell CONDIACELL® cell model ECWP D20
DIACHEM® electrode type Ø20x1.5 for cell CONDIACELL® cell model ECWP D20
